fi-70f

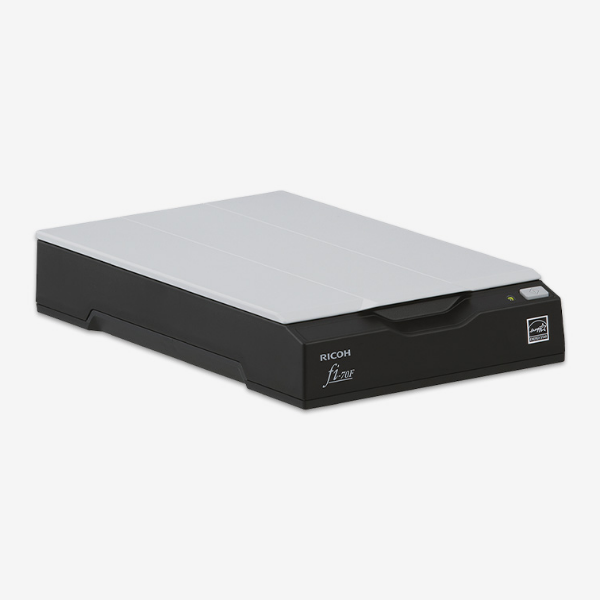

fi-70F for compact spaces
Perfect for a wide range of documents, from A6 sized sheets to IDs and small cards, this compact scanner guarantees a simple and fast scanning experience.
View Document and Downloads
View Accessories & Consumables
Scanner Information
fi-70F for compact spaces
Scanning in 1.3 seconds (Color, A6, 200 dpi), coverless scanning with automatic functionalities for increased user productivity, Easy, one button touch scanning, USB power option for portability

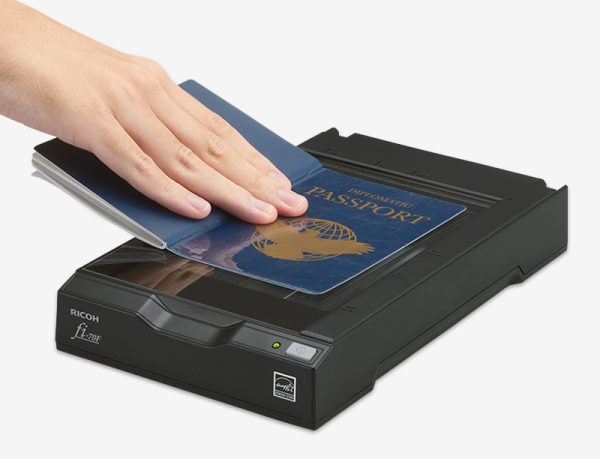

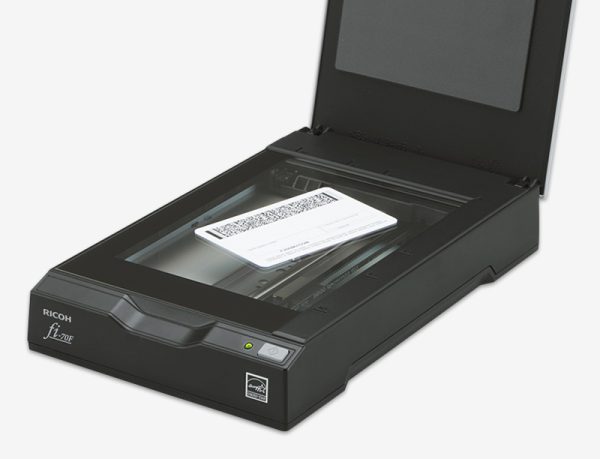

The compact, lightweight fi-70F high-speed scanner is ideal for front office, reception, patient intake, and retail environments. It quickly scans all major types of identification and small cards, including driver’s licenses, passports, military IDs, insurance cards, credit cards, photos, and small survey forms.
Quick Scan
Rapid color or B&W scanning up to 600 DPI.
Coverless Scanning

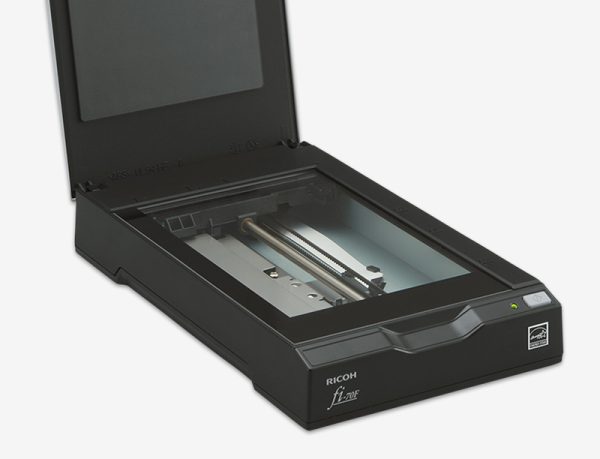

Scan without repetitive opening and closing the cover.
Easy One-Button Scanning
Save images with just one touch of the button.
Portable

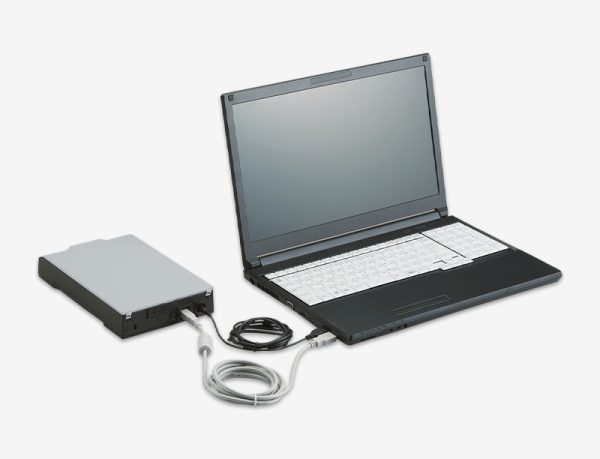

USB power option for portability.
| Product Name | Specification | Description |
|---|---|---|
| Scanner Type | Flatbed, Simplex | |
| Scanning Speed*1 (105 x 148 mm / A6) | ||
| AC Adapter | Color: 1.3 sec (200 dpi) / 2.0 sec (300 dpi) Grayscale/Monochrome: 0.9 sec (200 dpi) / 1.0 sec (300 dpi) |
|
| USB Bus-Powered | Color: 2.0 sec (200 dpi) / 2.5 sec (300 dpi) Grayscale/Monochrome: 2.0 sec (200/300 dpi) |
|
| Image Sensor Type | CIS (CMOS CIS) | |
| Light Source | 3 Color LED | |
| Optical Resolution | 600 dpi | |
| Output Resolution (Color/Grayscale/Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*2 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | Black | |
| Document Size | ||
| Maximum | 105 x 148 mm (4.1 x 5.8 in.) | |
| Minimum | N/A | |
| Interface | USB 2.0/USB 1.1 | |
| Power Requirements | AC 100 to 240 V ±10% | |
| Power Consumption (AC Adapter) | ||
| Operating Mode | 6 W or less | |
| Sleep Mode | 2 W or less | |
| Auto Standby (Off) Mode | 0.3 W or less | |
| Power Consumption (USB Bus-Powered) | ||
| Operating Mode | 5 W or less | |
| Sleep Mode | 2 W or less | |
| Auto Standby (Off) Mode | 0.3 W or less | |
| Operating Environment | ||
| Temperature | 5 to 35 °C (41 to 95 °F) | |
| Relative Humidity | 20 to 80% (non-condensing) | |
| Environmental Compliance | ENERGY STAR, RoHS | |
| Dimensions*3 (W x D x H) | 145 x 234 x 40 mm (5.7 x 9.2 x 1.6 in.) | |
| Weight | 0.9 kg (1.98 lb) | |
| Supported Operating System | Windows 11*4, Windows 10*4, Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016 | |
| Software/Drivers*6 | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*5, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, PaperStream Central Admin | |
| Included Items | AC cable, AC adapter, USB cable, USB bus power cable, Setup DVD-ROM |
| No. | Detals |
|---|---|
| 1 |
Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:
|
| 2 | Some limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi). |
| 3 | Protruding items are not included in indicated dimensions. |
| 4 | fi Series scanners do not run with Windows 11 and 10 ARM-based PCs. |
| 5 | Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver. |
| 6 | Refer to the fi Series Support Site for driver/software downloads and full lineup of all supported operating system versions. |
| Category | Part Number | Description |
|---|---|---|
| Options | ||
| PaperStream Capture Pro Scan Station (WG)*1 |
PA43404-A665 | PaperStream Capture Pro optional license |
| PaperStream Capture Pro | PA43404-B403 | One year license of PaperStream Capture Pro |
| PaperStream Capture Pro Premium | PA43404-B421 | One year license of PaperStream Capture Pro Premium |
| No | Description |
|---|---|
| 1 | This is an optional license for existing users of PaperStream Capture Pro 4.1 or earlier. The distribution of PaperStream Capture Pro 4.1 will be terminated in January 2026. Please consider using PaperStream Capture Pro/Pro Premium 5.0 or later. |
