S3100
s3100 best possible user experience.
Compact A3 scanner with fast scan speed and a straight-through paper path to feed thick or exceptionally long documents/p>
View Document and Downloads
View Accessories & Consumables
Scanner Information
s3100 best possible user experience.

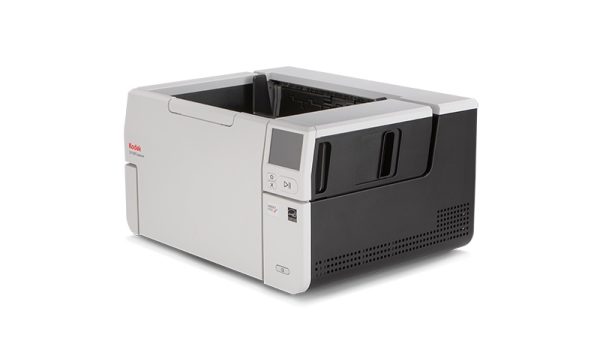

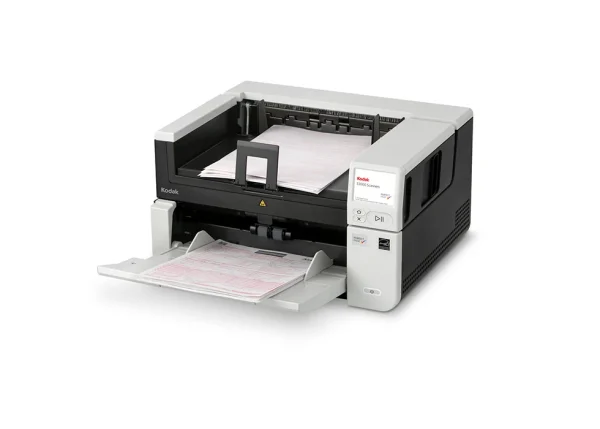

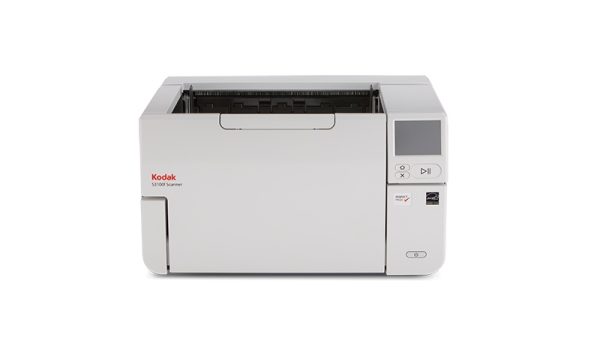

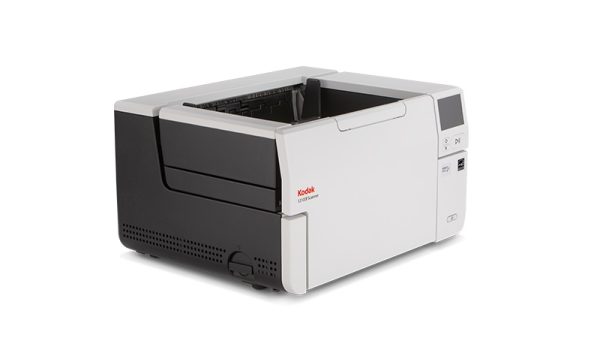

The award-winning KODAK S3100 Scanner is a powerful and robust A3 scanning solution designed to create the best possible user experience. Our user-focused design includes a large touchscreen with oversized buttons and front-facing input and exit trays for convenient access.
On-board image processing
Slashes demands on your PCs to speed scanning and boost efficiency
Simplified Scanning
Large intuitive color touchscreen, personalized workflows, and Smart Touch technology to automate complicated tasks
Scan Directly to Apps
Import information directly into applications with TWAIN, ISIS, or RESTful API based scanning
Enhanced security
Secure-boot solution, encryption over wire for network traffic, and USB 3.2 Gen 1x1-compatible
| Product Highlights |
Compact A3 scanner with fast scan speed and a straight-through paper path to feed thick or exceptionally long documents |
| Throughput Speeds Hover over me Throughput speed may vary depending on your choice of driver application software, operating system, PC and selected image processing features. |
100 ppm / 200 ipm |
| Feeder Capacity |
Up to 300 sheets of 80 g/m² (20 lb.) paper |
| Connectivity |
10/100/1000 ETHERNET USB 3.2 Gen 1x1 Compatible Hover over me USB 3.2 Gen 1x1 = USB 3.1 Gen 1 = USB 3.0 (5Gbps) |
| Maximum Document Size Hover over me The maximum document size supported by the scanner will vary based on the output image resolution and image compression used. |
305 mm x 4.06 m (12 in. x 160 in.) Hover over me Unlimited length using continuous cropping |
| Minimum Document Size |
63.5 mm x 71.1 mm (2.5 in. x 2.8 in.) Hover over me 50 mm x 50 mm (2 in x 2 in) using hand feeding and straight paper path |
| Paper Thickness and Weight |
34–433 g/m² (9–160 lb.) paper Hover over me Rear exit for paper > 200 g/m² (110 lb.) |
| Maximum Optical Resolution |
600 dpi |
| Archival Standard Compliance |
FADGI 2023: Documents (Unbound): General Collections 3-Star Hover over me Validated with Golden Thread NXT version 10.36 FADGI 2023: Documents (Unbound): Modern Textual Records Hover over me Validated with Golden Thread NXT version 10.36 |
| Accessories and Consumables |
Carrier Sleeves (5 PACK) Document Extenders Feeder Consumables Kits KODAK A3 Size Flatbed Accessory KODAK Enhanced Printer Accessory Printer Ink Cartridge and Carrier Rear Exit Tray Accessory |
| Acoustical Noise |
Off or Ready mode: < 20 dB(A) Scanning: <60 dB(A) |
| Approvals and Product Certifications |
Argentina (S mark) Australia/New Zealand (RCM) Canada (cTUVus & ICES-003) China (CCC) European Union (CE) European Union (GS Mark) India (BIS) Japan (VCCI) Mexico (NOM) Russia/Eurasian Economic Union (EAC) South Korea (KC) Taiwan (BSMI) US (cTUVus & FCC) |
| Barcode Reading |
Codabar Code 128 Code 3 of 9 EAN-13 EAN-8 Interleaved 2 of 5 PDF417 QR UPC-A UPC-E |
| Bundled Software Hover over me Choose one and download from the web |
Capture Pro Limited Edition Smart Touch |
| Data Security |
This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. Hover over me Read more about data security. |
| Dimensions and Weight |
Size with tray in the upright position:
|
| Electrical Requirements |
100-240 V (International); 50-60 Hz |
| Environmental Certification |
2008 EuP ENERGY STAR Qualified EPEAT Gold |
| File Format Outputs |
BMP Hover over me Native scanner and driver file format Not available when scanning with AQIST for FADGI compliant JPEG Hover over me Native scanner and driver file format Not available when scanning with AQIST for FADGI compliant images Microsoft Excel Hover over me Available with bundled applications Multipage TIFF Hover over me Available with bundled applications PDF Hover over me Available with bundled applications PNG Hover over me Available with bundled applications RTF Hover over me Available with bundled applications Single-page TIFF Hover over me Native scanner and driver file format Text searchable PDF Hover over me Available with bundled applications |
| Image Output Resolution Options |
Up to 1200 dpi Hover over me Supported DPI: 100, 150, 200, 240, 250, 300, 400, 500, 600, 1200 |
| Network Protocols |
DHCP (or static IP) TCP/IP |
| Operating System Compatibility |
Kylin 10 (x86/x64 & MIPS only) (Available in China only) Neokylin V7 (Intel x86/x64 & MIPS only) (Available only in China) Open SUSE Leap-15.2 & 13.1 SUSE Enterprise Desktop-15.2 & 12.4 SUSE Linux Enterprise Desktop 12 SP2 64-bit Ubuntu 18.04 64-bit Ubuntu 20.04 64-bit UOS (MIPS only) (Available in China only) WINDOWS 10 (32- and 64-bit) WINDOWS 11 (64 bit) Hover over me Pro Version Ubuntu 22.04 (64-bit) Windows 2016 Server LTSC (64-bit) Windows 2019 Server LTSC (64-bit) Windows 2022 Server LTSC (64-bit) |
| Operating Temperature and Humidity |
Operating Humidity 15% - 80% RH Operating Temperature 10-35° C (50-95° F) |
| Operator Control Panel |
3.5 inch (89 mm) graphical color touchscreen LCD with operator control buttons |
| Optional Software |
Capture Pro Software Info Input Solution |
| Paper Path Options |
Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected |
| Sure Path Features |
Controlled stacking Enhanced jam recovery Intelligent Document Protection Interactive Operator Control Panel (OCP) Length Multifeed Detection Rear exit Ultrasonic Multifeed Technology |
| Perfect Page Features |
Adaptive threshold processing Hover over me Not available when scanning with AQIST for FADGI compliant images Add or remove border Aggressive cropping Hover over me Not available when scanning with AQIST for FADGI compliant images Auto white balance Hover over me Not available when scanning with AQIST for FADGI compliant images Autocrop Automatic Brightness/Contrast Automatic color balance Hover over me Not available when scanning with AQIST for FADGI compliant images Automatic color detection Hover over me Not available when scanning with AQIST for FADGI compliant images Automatic orientation Automatic photo cropping Background color smoothing Barcode reading Black and white image segmentation Brightness and contrast adjustment Color-on-the-fly toggle patch Hover over me Not available when scanning with AQIST for FADGI compliant images Content-based blank page removal Continuous Scanning Mode Deskew Digital stamping Dual stream scanning Electronic color dropout Hover over me Not available when scanning with AQIST for FADGI compliant images Enhanced color adjustment Hover over me Not available when scanning with AQIST for FADGI compliant images Enhanced color management Hover over me Not available when scanning with AQIST for FADGI compliant images Fixed cropping Hover over me Not available when scanning with AQIST for FADGI compliant images Fixed thresholding Hover over me Not available when scanning with AQIST for FADGI compliant images Halftone removal Hover over me Not available when scanning with AQIST for FADGI compliant images Image edge fill Image hole fill Hover over me Not available when scanning with AQIST for FADGI compliant images Image merge Hover over me Not available when scanning with AQIST for FADGI compliant images Image split iThresholding Hover over me Not available when scanning with AQIST for FADGI compliant images Lone Pixel Noise Removal Hover over me Not available when scanning with AQIST for FADGI compliant images Majority rule noise removal Multi-lingual auto orientation Multicolor dropout Hover over me Not available when scanning with AQIST for FADGI compliant images Orthogonal rotation Output Compression-CCITT Group IV, JPEG, Uncompressed Output Rear side printer Relative cropping Hover over me Not available when scanning with AQIST for FADGI compliant images Sharpening Hover over me Not available when scanning with AQIST for FADGI compliant images Sleeve scanning (for scanning A3 documents or multiple small documents) Snap to Size Streak filtering |
| Power Consumption |
Standby: less than 0.3 watts Sleep Mode: Less than 4.7 watts Running: less than 70 watts |
| Recommended Daily Volume |
Up to 45,000 pages per day |
| Recommended PC Configuration |
INTEL CORE i3, running @ 3.5 GHz or higher, USB port 3.0 (Super Speed) or 2.0 (High Speed), 3.43 GB RAM or more |
| Scanning Technology |
Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3) |
| Standard Software and Drivers |
Citrix certified ISIS Drivers KOFAX certified LINUX (TWAIN and SANE) Drivers TWAIN Drivers WIA Drivers |
| Prices |
$$$ |
KODAK A3 Size Flatbed Accessory
Includes: KODAK A3 Flatbed with black background, 2-meter (6-ft.) USB cable and power supply.
Usage: for scanning exception documents. Accommodates document sizes up to 305 x 457 mm (12 x 18 in.)
Download Brochure
Imprinter Accessory
Document imprinting accessory (rear-side, post-scan imprinting of up to 40 alphanumeric characters, with 11 imprinting positions).
Download Brochure
