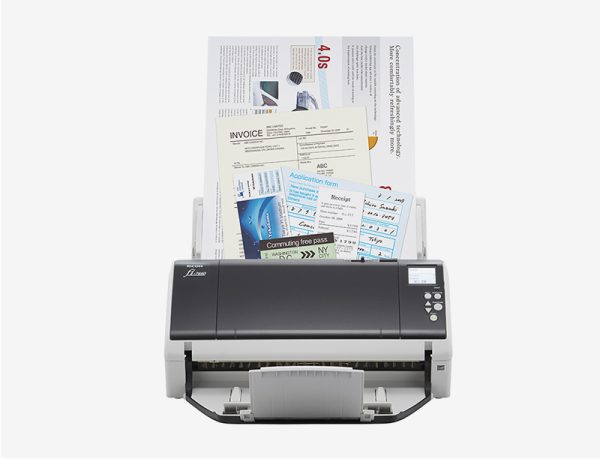

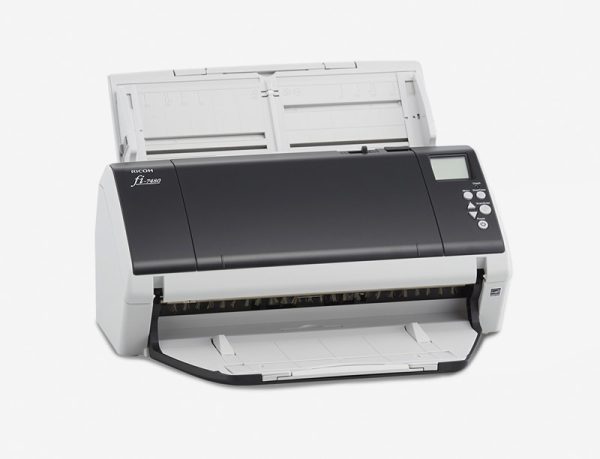

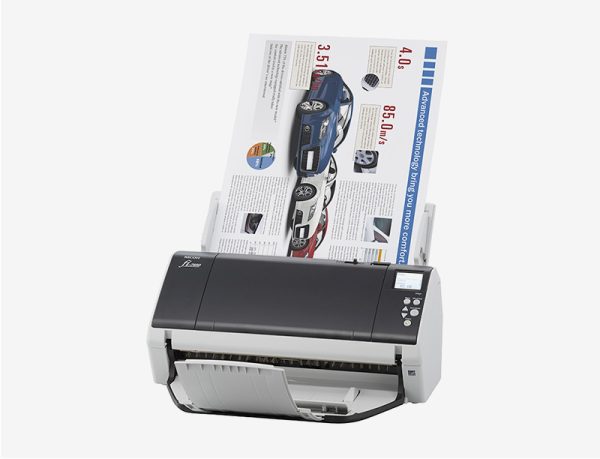

fi-7480
fi-7480 with wide-format scanning.
Designed for professional workloads and engineered to last, the fi-7480 scanner offers wide-format scanning in the most compact-in-class space.
View Document and Downloads
View Accessories & Consumables
Scanner Information
fi-7480 with wide-format scanning.
The fi-7480 provides high quality technology for reliable scanning and enhanced image processing functionalities to significantly empower business workflows. Even with its compact size, the device scans A4 landscape documents at 80 ppm/160 ipm (200/300 dpi), and is capable of loading up to 100 sheets at a time and scanning up to as many as 24,000 sheets a day.
Fast Start-Up
Starts up from sleep mode in less than a second.
Manual Feed Mode
Scans thick documents and envelopes without the need to change driver settings.
Multi-Feed Detection
Ensures the capture of all images fed through the scanner.
Automatic Stacker
Controls the speed of the paper being ejected, keeping documents aligned after scanning and saving processing time.
| Product Name | Specification | Description |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex | |
| Scanning Speed"*1 (A4 Ladnscape) (Color*2/Grayscale*2/Monochrome*3) | Simplex: 80 ppm (200/300 dpi) Duplex: 160 ipm (200/300 dpi) |
|
| Scanning Speed"*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3) | Simplex: 65 ppm (200/300 dpi) Duplex: 130 ipm (200/300 dpi) |
|
| Image Sensor Type | Color CCD x 2 (front x 1, back x 1) | |
| Light Source | White LED Array x 4 (front x 2, back x 2) | |
| Optical Resolution | 600 dpi | |
| Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (1 dpi increments), 1,200 dpi (driver)*5 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | White / Black (selectable) | |
| Document Size (ADF) | ||
| Maximum | 304.8 x 431.8 mm (12 x 17 in.) | |
| Minimum | 50.8 x 69 mm (2 x 2.7 in.) (Portrait) | |
| Long Page Scanning*6 | 5,588 mm (220 in.) | |
| Paper Weight (Thickness) | ||
| Paper | 27 to 413 g/m2 (7.2 to 110 lb) A8 size: 127 to 209 g/m2 (34 to 56 lb) |
|
| Plastic Card | Up to 1.4 mm*7 | |
| ADF Capacity*8 | 100 sheets (A4 80 g/m² or Letter 20 lb) | |
| Expected Daily Volume*9 | 24,000 sheets | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection | |
| Paper Protection | Lag detection, Sound detection (iSOP)*10 | |
| Interface | USB 3.0 / USB 2.0 / USB 1.1 | |
| Power Requirements | AC 100V - 240V 50/60 Hz | |
| Power Consumption | ||
| Operating Mode | 43 W or less | |
| Sleep Mode | 1.4 W or less | |
| Auto Standby (Off) Mode | 0.30 W or less | |
| Operating Environment | ||
| Temperature | 5 to 35 °C (41 to 95 °F) | |
| Relative Humidity | 20 to 80% (Non-condensing) | |
| Environmental Compliance | ENERGY STAR, RoHS | |
| Dimensions (W x D x H)*11 | 380 x 209 x 168 mm (15.0 x 8.2 x 6.6 in.) | |
| Weight | 7.6 kg (16 lb) | |
| Supported Operating System | Windows 11*12, Windows 10*12, Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016, Linux (Ubuntu) | |
| Software / Drivers*14 | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*13, Image Scanner Driver for Linux (SANE)sup>*13, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™ , PaperStream Central Admin | |
| Image Processing | Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Static threshold | |
| Included Items | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM |
| No | Description |
|---|---|
| 1 | Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment: • Windows 10/CPU: Intel Core™ i3-10105 3.7GHz/Memory: 8GB/Storage: SSD |
| 2 | Indicated speeds are from using JPEG compression. |
| 3 | Indicated speeds are from using TIFF CCITT Group 4 compression. |
| 4 | Selectable maximum resolution may vary depending on the length of the scanned document. |
| 5 | Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi). |
| 6 | Capable of scanning documents longer than A3 (297 x 420 mm / 11.7 x 16.5 in.) sizes. When using PaperStream IP (TWAIN/ISIS™) to scan at 200 dpi, the maximum scanning length is 5,588 mm (220 in.). |
| 7 | Capable of scanning up to 3 cards at a time. (Note: does not set more than one embossed card at a time.) |
| 8 | Maximum capacity depends on paper weight and may vary. |
| 9 | Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability. |
| 10 | Intelligent Sonic Paper Protection. |
| 11 | Excludes the ADF paper chute and stacker. |
| 12 | fi Series scanners do not run with Windows 11 and 10 ARM-based PCs. |
| 13 | Functions equivalent to those offered by PaperStream IP may not be available with the Image Scanner Driver for macOS/Linux or WIA Driver. |
| 14 | Refer to the fi Series Support Site for driver/software downloads and full lineup of all supported operating system versions. |
| Part | Part Number | Description |
|---|---|---|
| Consumables | ||
| Brake Roller | PA03710-0001 | Every 200,000 sheets*1 |
| Pick Roller | PA03670-0002 | Every 200,000 sheets*1 |
| Print Cartridge | CA00050-0262 | 4,000,000 printed characters |
| Options | ||
| Carrier Sheets | PA03360-0013 | Each package contains 5 carrier sheets |
| Post Imprinter (FI-748PRB) | PA03710-D401 | Back-side printing on document |
| PaperStream Capture Pro Scan Station (DP)*2 | PA43404-A675 | PaperStream Capture Pro optional license |
| PaperStream Capture Pro | PA43404-B403 | One-year license of PaperStream Capture Pro |
| PaperStream Capture Pro Premium | PA43404-B421 | One-year license of PaperStream Capture Pro Premium |
| No. | Details |
|---|---|
| 1 | Guidelines for A4 documents (80 g/m2 [20 lb]). Cycles vary based on document type, scanner usage, cleaning frequency, and operating environment. |
| 2 | Optional for users of PaperStream Capture Pro 4.1 or earlier. Distribution of version 4.1 ends in January 2026. Consider upgrading to PaperStream Capture Pro/Pro Premium 5.0 or later. |
Recommends use of original or approved accessories for consumables, options and cleaning kits designed for your device. Device failures, troubles and damages arising from use of OEM or 3rd Party accessories may render your warranty invalid and incur charges for repair even during the warranty period.
